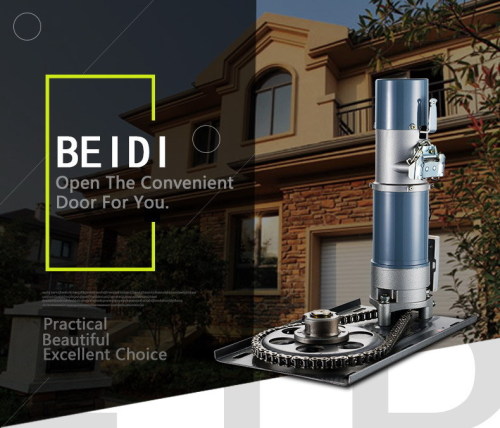

Aluminum Alloy Rolling Door Motor BDE600 manufacturer from China Beidi Gate Industry Co.,Ltd.

Payment Terms:	T/T,WU
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: BDE600

Production Capacity: 10,000 sets/month

Delivery Date: 30 days since received depo...

Special Function: Others

Open Style: Rolling

Voltage: 220V

Lifting Force: 500±10% KG

Rotate Speed: 4.8 r/min

Machine Leg: 3 legs

Means of Transport: Ocean

Packing: Foam,carton

Product Material: Aluminum Alloy

Position: Industrial

Brand Name: No brand

Power Rating: 300W

Output Torque: 343N.m

Max.Lifting Height: 6M

Voltage: 220V
Power Rating:300W
HP:3/5
Lifting Force:500±10% KG
Output Torque:343N.m
Rotate Speed: 4.8 r/min
Max.Lifting Height:6M

BEIDI Door Openers (Specs, Parameters, Features)
Ordinary-type Rolling Shutter Opener (220V 50HZ)
Model	Power Rating (W)	HP	Rated Load	Maximum Lifting Height (M)	Use Chain No.	Applicable Door Size(M) (thickness 1mm)	Machine Leg	G.W (KG)	N.W (KG)	Packing Size (mm)
Lifting Force (KG.f)	Output Torque (N.m)	Output Rotational Speed (r/min)
BDE-600	300	3/5	500±10%	343	4.8	6	10A	5X6	3 legs	10.8	10	550255200
Machine Board	5-inch ring for standard	12	11.6	51029090
833 Remote controller	Selectable:882 Remote controller with infrared protection function	0.5	0.39	20017570
Remote Controller
	G.W/pc	N.W/pc	Packing size/pc	20sets/box	G.W/box	N.W/box		Packing size/box
BDB-881	0.5	0.39	20017570	10.5	7.8		410365360
BDB-882	0.43	0.32	9	6.4	Standard
BDB-883	0.69	0.59	14.3	11.8	Infrared protection

BEIDI Door Openers (Specs, Parameters, Features)

Ordinary-type Rolling Shutter Opener (220V 50HZ)

Model

Power Rating (W)

Rated Load

Maximum Lifting Height (M)

Use Chain No.

Applicable Door Size(M) (thickness 1mm)

Machine Leg

G.W (KG)

N.W (KG)

Packing Size (mm)

Lifting Force (KG.f)

Output Torque (N.m)

Output Rotational Speed (r/min)

BDE-600

300

3/5

500±10%

343

4.8

10A

5X6

3 legs

10.8

550*255*200

Machine Board

5-inch ring for standard

11.6

510*290*90

833 Remote controller

Selectable:882 Remote controller with infrared protection function

0.5

0.39

200*175*70

Remote Controller

G.W/pc

N.W/pc

Packing size/pc

20sets/box

G.W/box

N.W/box

Packing size/box

BDB-881

0.5

0.39

200*175*70

10.5

7.8

410*365*360

BDB-882

0.43

0.32

6.4

Standard

BDB-883

0.69

0.59

14.3

11.8

Infrared protection
